The premier supplier of carbon tubular products in North America. We have the expertise to produce everything from raw material tubing to fabricated, robotically-welded and powder-coated sub-assemblies.
Leveraging our metallurgical and new product development expertise, we help customers realize significant cost savings and deliver innovative solutions faster.
OVER 50 YEARS OF EXCELLENCE
LEADING MANUFACTURER OF CARBON TUBE
We design and manufacture a comprehensive range of tube products including standard and specialized tubular solutions in multiple diameter sizes, shapes and profiles to meet the unique needs of our customers.
Capabilities and Services
Our in-house capabilities are listed below. We also have access to additional value-added processes.

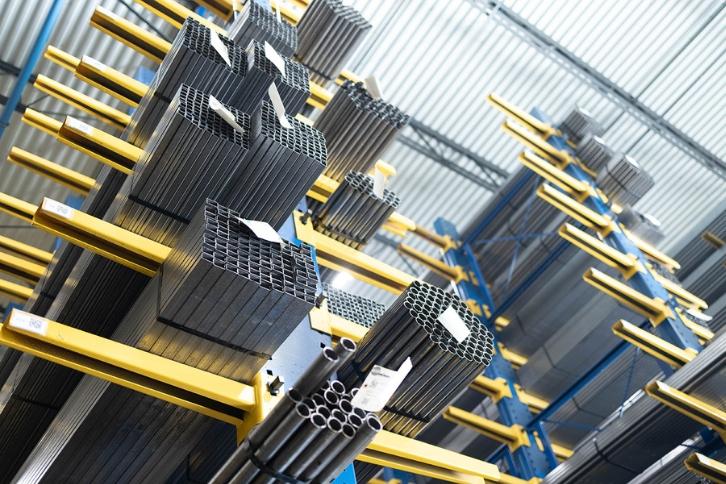

TUBING SHAPES AND PROFILES
We provide steel tubing products for structural applications that require consistently superior quality in critical tolerance applications. We have 3 high-strength, high-speed tube mills that produce tubing in a variety of shapes, sizes and materials. Includes automated packaging lines at the mill. Details below:
Tube Sizes: Round Tubing: 5.8” OD - 3.125” OD Round, Squares & Rectangles up to 2” x 3”, Ovals, Flat Ovals, and Special Custom Shapes. Material Thicknesses from 7 Gauge - 22 Gauge and Standard and Metric Sizes
Material Types: ASTM Type 1 Steel Tubing – Hot Rolled Pickled & Oiled (HRP&O), Type 2 Steel Tubing – Cold Rolled (CR), High Strength Tubing (HSLA) Grade 50 – 100+ Ksi, Ultra-high Strength Steels (Dual Phase, Complex Phase), ROPS/OPS & Charpy Materials. Galvanized or Aluminized Tubing and Ability to Produce Special Chemistry Steel Applications.

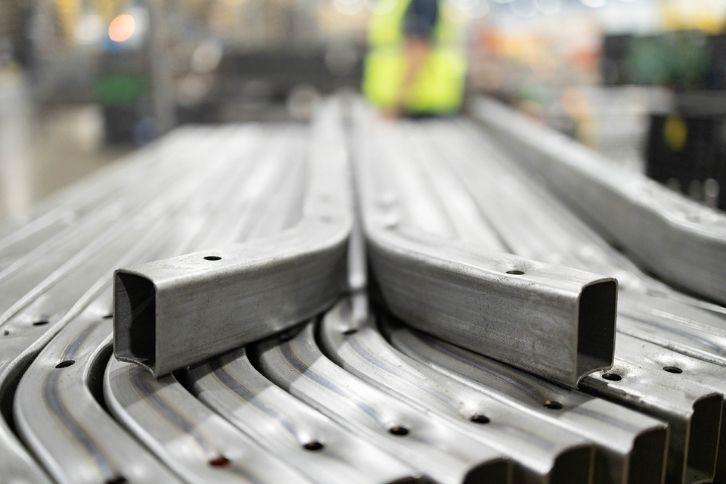

FABRICATED COMPONENTS
With years of experience in the industry, we are trusted by some of the world’s largest OEMs to provide precision-fabricated tubular components. Well suited for a variety of industries, we make components for a wide variety of applications. A Few Examples of our products include:
- Chassis Tubes and Structural Frame Components
- Complete ROPS/OPS
- Fabricated Structures and Components
- Seating Components
- Steel Mechanism Components
- Furniture Frames, Guards, and Weldments
- Painted and Kitted Parts

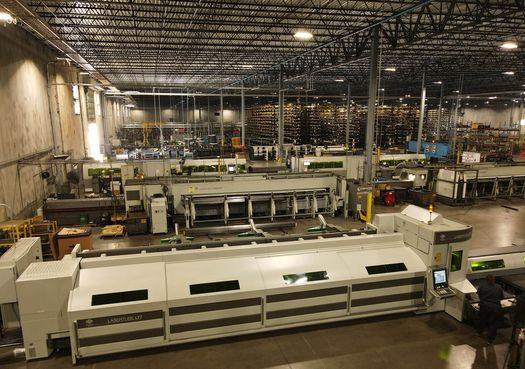

HIGH SPEED AND LASER CUTTING
Newest technology available in Laser Equipment provides precision cutting at tight tolerances, excellent repeatability, and costs competitive with traditional punching, but without the tooling investment. We have 5 laser cutting machines that can produce parts in a variety of shapes and ranging in size from 0.5” (12.7mm) to 6” (152.4mm) OD, with solid bar to 22 GA, in wall thickness from 0.187” (4.74mm) to 0.022” (0.558mm).
- 4 fiber lasers (5-Axis Capability)
- 1 CO2 laser
High-speed precision cutting process provides tight tolerance cut lengths at extremely competitive pricing. Includes end finishing with automatic brush deburr.
- 1 Rattunde with robotic stacking cell
- 1 RSA precision high-speed saw
- 2 Havens
.jpg&w=1080&q=75)

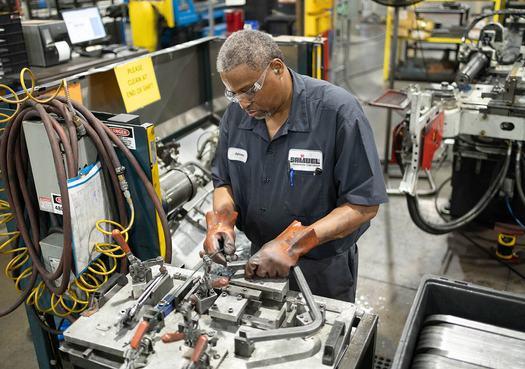

WELDING
At Samuel ATG, our welded assembly capabilities include both robotic and manual mig-welding, as well as lathe welding. With over 35 years of tube welding experience, we can match our customer’s complexity and volume requirements. Our welding capabilities allow us to simplify our customers' supply chains and reduce associated costs by eliminating the need to coordinate multiple source scheduling, and lowering space and inventory needs required for final assembly.
Our welded assembly capabilities include:
- 2 Dual-robot mig welding cells
- 5 Single robot mig welding cells
- 25 Manual mig and tig welding stations
- Lathe welding
ASSOCIATED TUBE GROUP A DIVISION OF SAMUEL
At Samuel ATG, we understand our quality management standards are essential to our customers and as such we ensure our locations are regularly audited for ongoing certification compliance. We have earned a reputation for providing strong technical support to new and existing customers.
TECHNOLOGICAL EXCELLENCE
With our expertise in processing and engineering, we have the capability to meet your needs when others cannot. We are your one-stop shop, from design collaboration, prototyping, and seamless production launch.
COMMITMENT TO QUALITY
Supplying directly to the most demanding OEMs in the industry requires relentless pursuit of quality. Delivering on those requirements continues to drive our success and growth.
EXPERIENCED TEAM
Known and trusted since 1973, our vast range of manufacturing capabilities is rivaled only by the decades of experience possessed by our team running it.
VERTICAL INTEGRATION
It is rare to find a tubing supplier that controls all aspects of manufacturing from the coil form, through tube rolling, fabrication, and then welding. This not only provides us with schedule flexibility and control over all aspects of quality, but also a competitive advantage in cost to you.
